What Is IPE Beam? Standard Sizes, Advantages and Applications for Global Projects

Introduction

IPE beam, also known as European standard I-beam, is one of the most popular hot-rolled structural steel profiles in the European and global construction industry. Manufactured strictly in accordance with EN 10034 and EN 10163-3 European standards, it features a slim symmetrical I-shaped cross-section with parallel flange surfaces.

With its core advantages of lightweight yet high strength, standardized dimensions, and exceptional structural stability, IPE I-beams are widely recognized by overseas steel distributors and engineering contractors, and are extensively used in civil buildings, industrial plants, and municipal infrastructure projects.

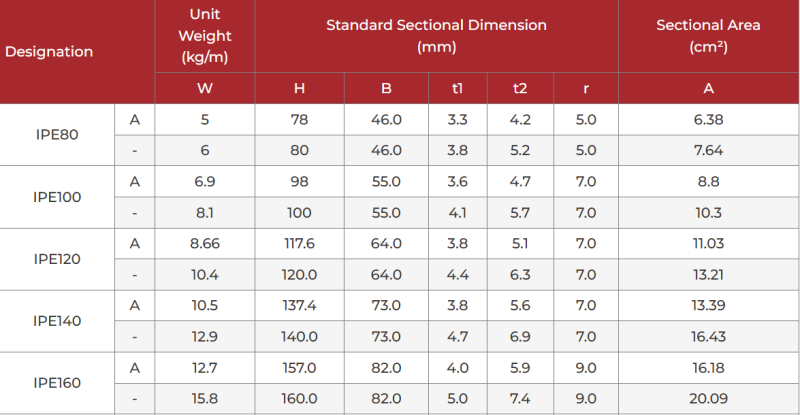

Standard Size & Grades

IPE sizes ranging from IPE80 to IPE600 in three mainstream grades: S235JR, S275JR and S355JR.

• S235JR: Low carbon steel, good plasticity and weldability, suitable for general civil buildings and temporary structures.
• S275JR: Balanced strength and toughness, ideal for conventional industrial construction.
• S355JR: High-strength structural steel, applicable to large-span buildings, bridge structures and heavy-load engineering.

Advantages of IPE Steel Beams

IPE sections features a typical structural configuration with a slender web and narrow and parallel flanges.

• High Strength-to-Weight Ratio: 40%-60% lighter than solid steel for the same load-bearing capacity. Help engineering contractors reduce overall steel consumption, lower project costs, and enhance profit margins.
• Excellent Process Performance: The IPE Beam features a smooth, flat surface with uniform material texture, offering excellent weldability, cutability, and corrosion resistance. It meets customized modification requirements for various engineering applications across multiple scenarios.
• Structural stability: The symmetrical parallel flange structure exhibits uniform stress distribution and balanced load distribution, maintaining stability under both large-span supports and complex construction conditions.

IPE beams are versatile structural materials, widely used in various overseas construction and industrial projects:

• Civil buildings: residential, commercial, and office building frameworks.
• Industrial structures: factory buildings, warehouse mezzanines, industrial work platform supports.
• Municipal Infrastructure: small-to-medium span bridges, pedestrian overpasses, steel structural components for municipal facilities.
• Mechanical engineering: large equipment foundations, crane beams, trailer frame supports.
• Temporary works: construction site support systems and temporary steel structures.
