High-Quality S275JR UPN Channel from China Suppliers - Factory Stock of 20,000 Tons Available
Specifications
Grade: EN10206-1:2000 EN10279:2000 EN10163-3:2004 S235JR S275JR S355JR
Size: UPN50-UPN400, as per customer's requirement
Length: 6m, 12m, customizable
Surface treatment: Black
Packing: Standard sea-worthy packaging
Delivery date: In stock, ships immediately
Service: Punching, painting, galvanizing, cutting, welding, etc.
| Size | Weight (Kg/m) |
Dimensions (mm) | ||||
|---|---|---|---|---|---|---|
| H | B | Tw | Tf | r | ||
| UPN50 | 5.59 | 50 | 38 | 5 | 7 | 7 |
| UPN65 | 7.09 | 65 | 42 | 5.5 | 7.5 | 7.5 |
| UPN80 | 8.64 | 80 | 45 | 6 | 8 | 8 |
| UPN100 | 10.6 | 100 | 50 | 6 | 8.5 | 8.5 |
| UPN120 | 13.4 | 120 | 55 | 7 | 9 | 9 |
| UPN140 | 16 | 140 | 60 | 7 | 10 | 10 |
| UPN160 | 18.8 | 160 | 65 | 7.5 | 10.5 | 10.5 |
| UPN180 | 22 | 180 | 70 | 8 | 11 | 11 |
| UPN200 | 25.3 | 200 | 75 | 8.5 | 11.5 | 11.5 |
| UPN220 | 29.4 | 220 | 80 | 9 | 12.5 | 12.5 |
| UPN240 | 33.2 | 240 | 85 | 9.5 | 13 | 13 |
| UPN260 | 37.9 | 260 | 90 | 10 | 14 | 14 |
| UPN280 | 41.8 | 280 | 95 | 10 | 15 | 15 |
| UPN300 | 46.2 | 300 | 100 | 10 | 16 | 16 |
| UPN320 | 59.5 | 320 | 100 | 14 | 17.5 | 17.5 |
| UPN350 | 60.6 | 350 | 100 | 14 | 16 | 16 |
| UPN380 | 63.1 | 380 | 102 | 13.5 | 16 | 16 |
| UPN400 | 71.8 | 400 | 110 | 14 | 18 | 18 |

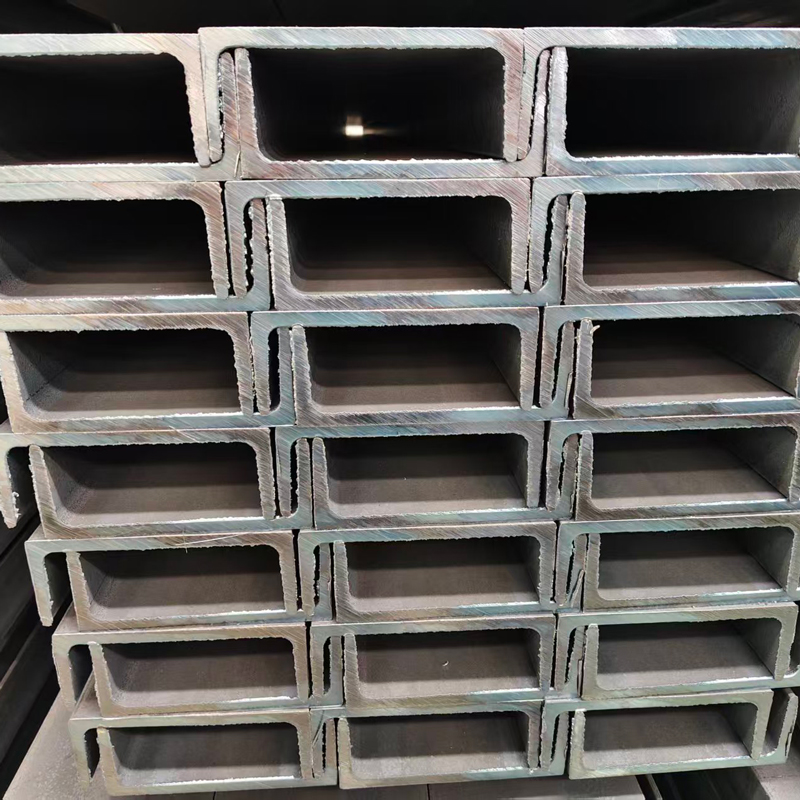

Product Display

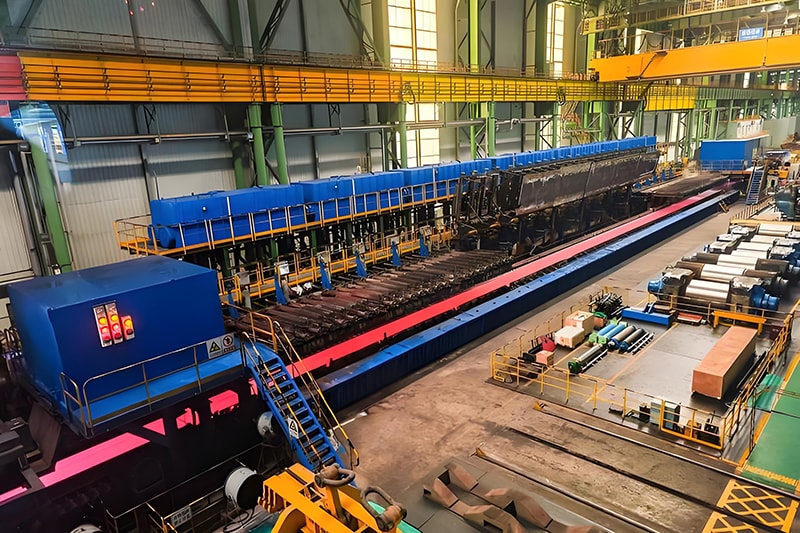

UPN Channel production line

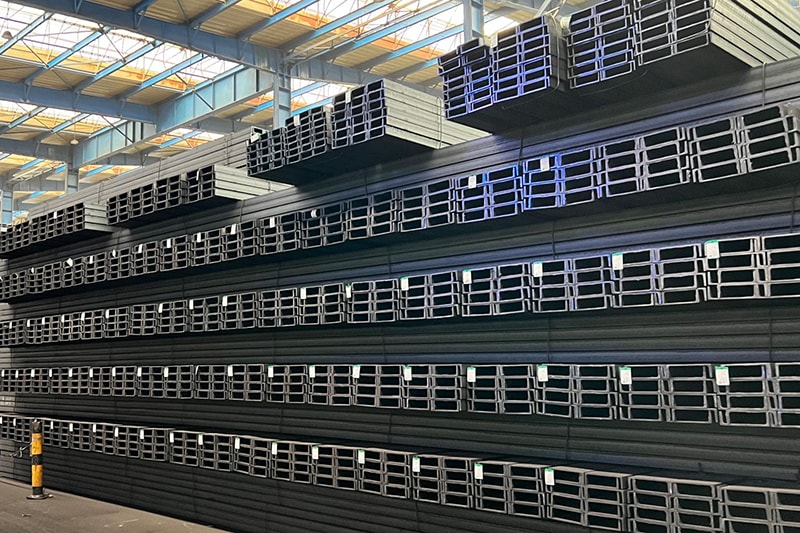

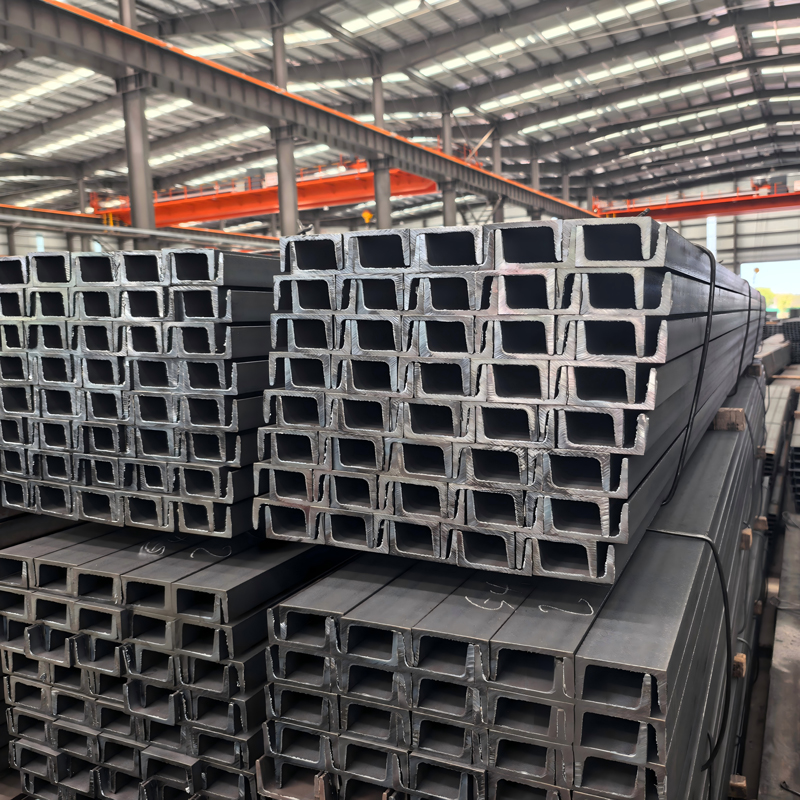

UPN Channel Warehouse

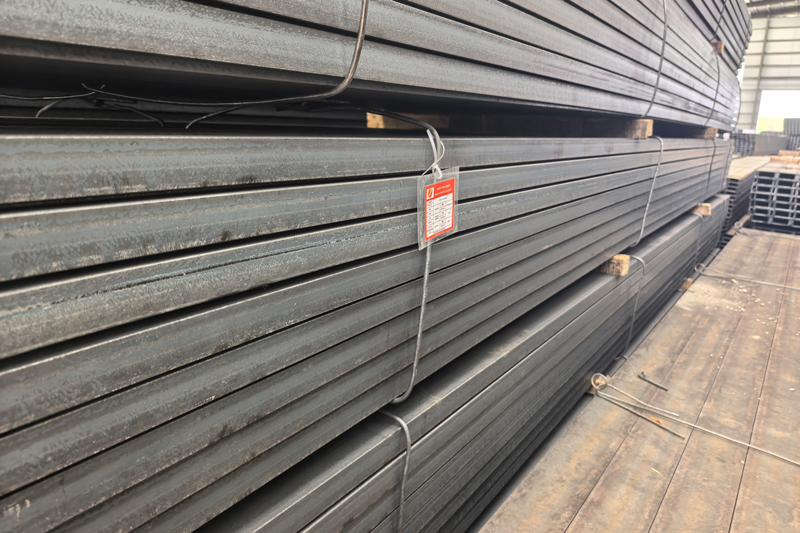

UPN Channel packing

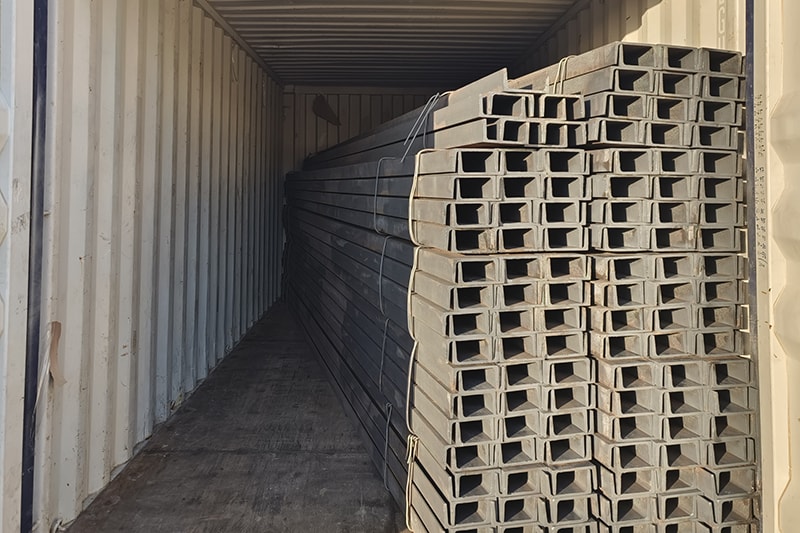

Loaded into container

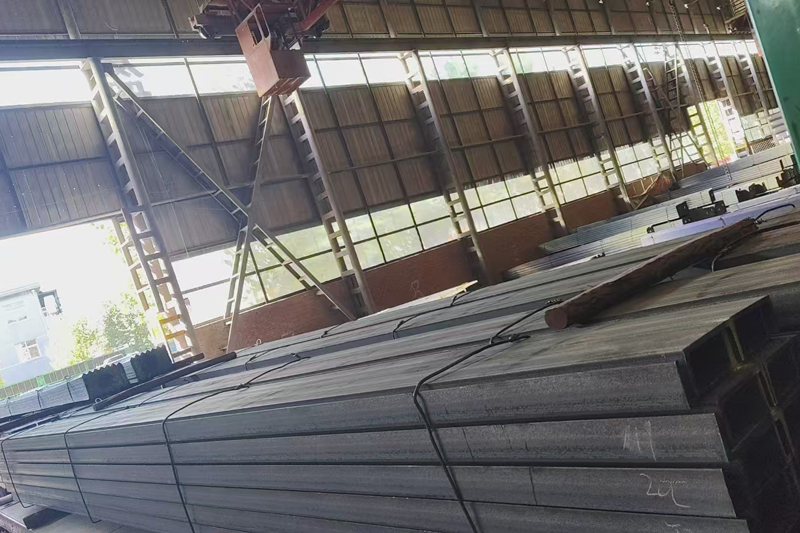

Transported to the port

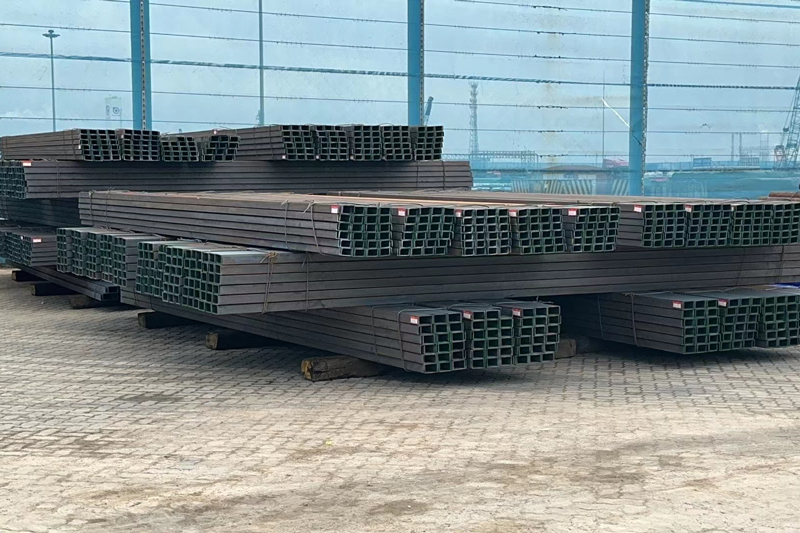

In the port yard
Shipping Process

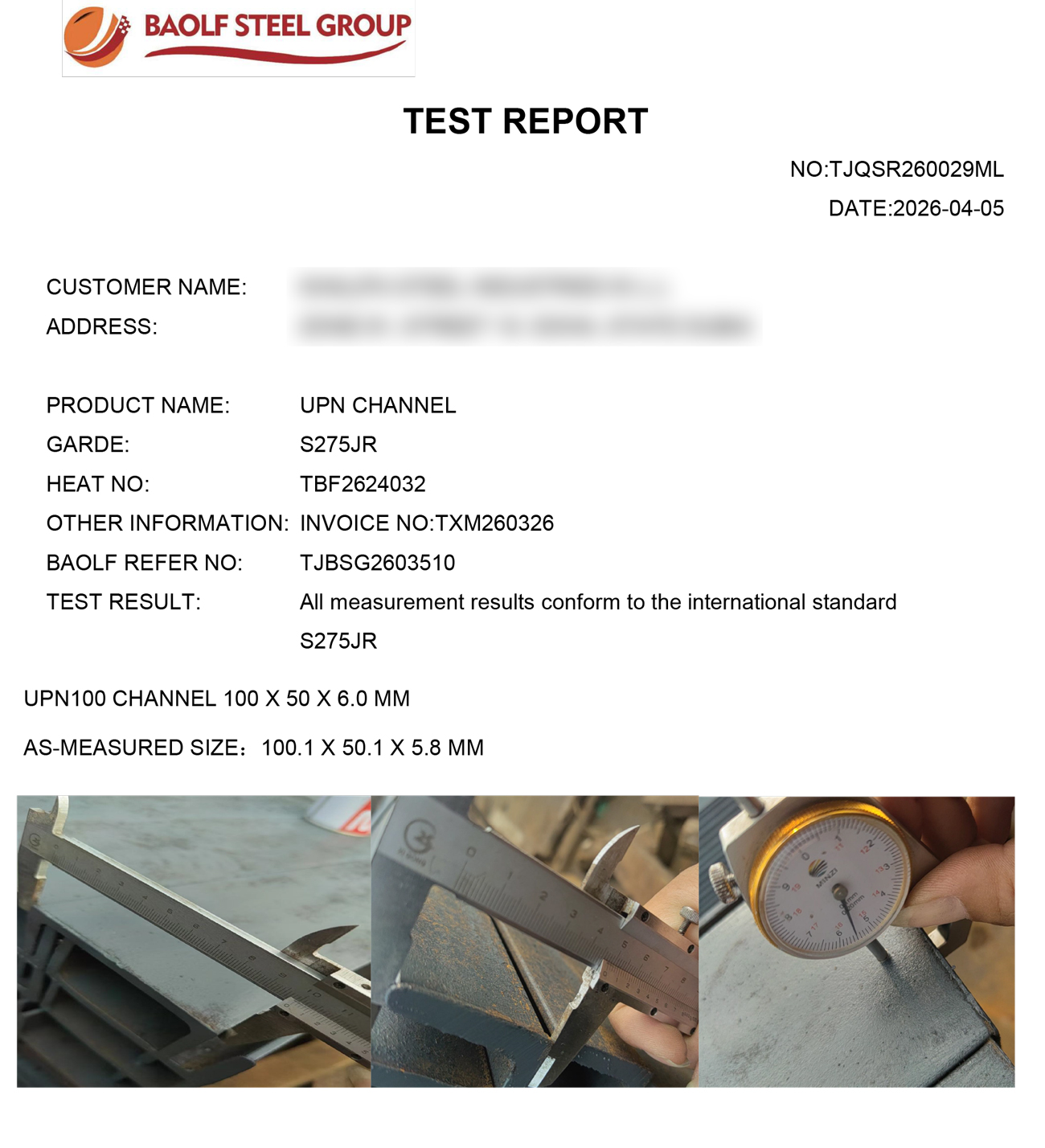

Free Quality Inspection Report
Exhibition
Company Certificate
CE
ISO14001:2015
ISO9001:2015
Alliance Member OF Tianjin Metal Materials Industry Association
Alliance of China Steel Export
China National Association of Metal Material Trade
FAQ
Q: Are you a manufacturer?
A: Absolutely. We are a direct manufacturer with our own large-scale facility located in Tianjin, China. You are more than welcome to visit us!
Q: Can I place a trial order for just a few tons?
A: Certainly. We value every partner regardless of the order size. We can easily arrange an LCL (Less than Container Load) shipment to accommodate your specific needs.
Q: Is the sample free of charge?
A: Yes, we provide samples for free so you can verify our quality. We only ask the buyer to cover the courier cost.
Q: How long is the delivery time?
A: Most sizes are in stock and can be shipped immediately.
Q: What steel grades do you provide for the UPN channels?
A: We offer steel grades including EN10206-1:2000, EN10279:2000, EN10163-3:2004, S235JR, S275JR, and S355JR.
Q: What processing services do you offer?
A: We provide punching, painting, galvanizing, cutting, welding, and customizable lengths to meet your requirements.
