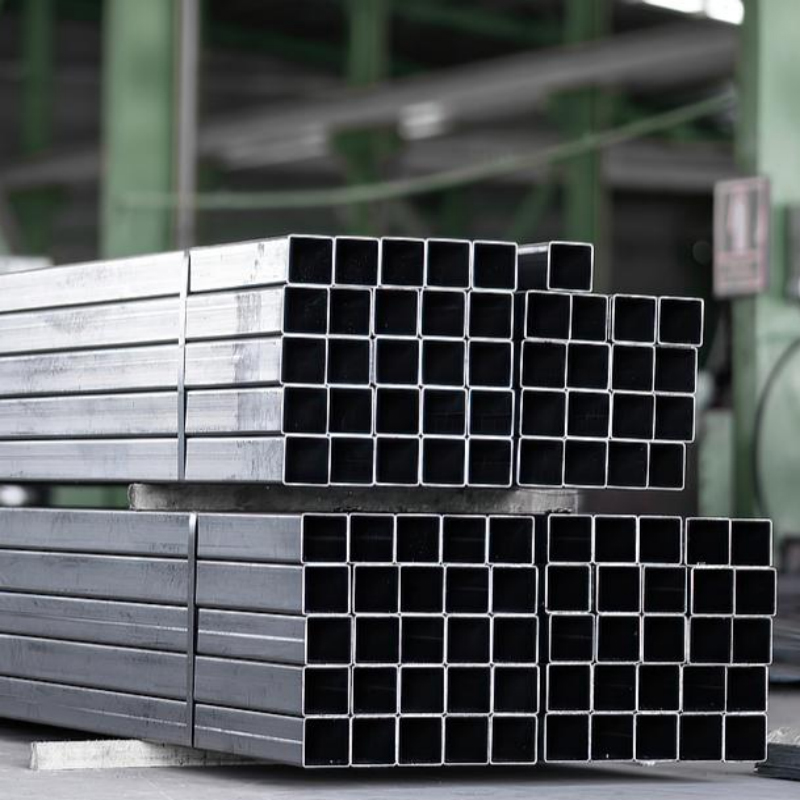

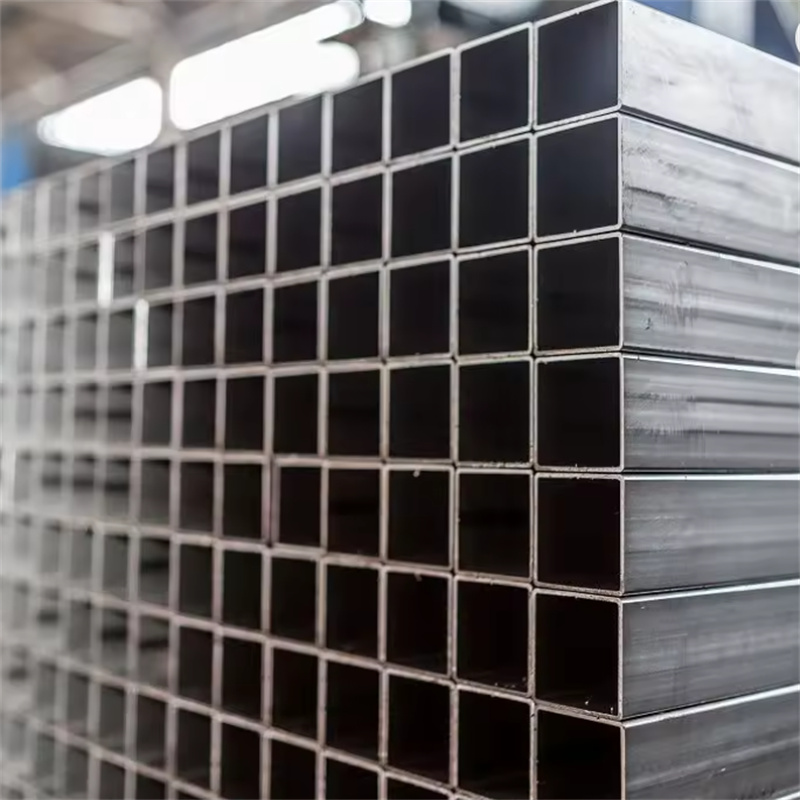

High Quality Carbon Steel Square & Rectangular Pipe

SIZE

 MM

THICKNESS

MM

SIZE

MM

THICKNESS

MM

25x25

1.5-2.5

25x50

1.7-4.0

30x30

1.5-2.8

30x50

1.7-4.0

40x40

1.7-4.0

30x60

1.7-5.0

50x50

1.7-5.0

40x50

1.7-5.0

60x60

1.8-6.0

40x60

1.7-5.0

70x70

1.8-6.0

40x80

1.8-6.0

75x75

1.8-6.0

50x100

1.8-6.0

80x80

1.8-6.0

60x120

2.0-6.0

90x90

2.0-6.0

50x150

2.2-8.0

100x100

2.2-8.0

75x125

2.2-8.0

120x120

4.0-12.0

80x120

2.2-8.0

150x150

2.75-12.0

80x160

4.0-12.0

160x160

4.0-12.0

100x200

2.75-12.0

200x200

4.0-12.0

150x200

4.0-12.0

250x250

4.0-12.0

150x250

4.0-12.0

300x300

5.75-12.0

100x300

4.0-12.0

400x400

6.0-12.0

200x400

4.0-12.0

ASTM A500 Square& Rectangular Pipe - Chemical Composition by Grade

Element

Grade B (%)

Grade C (%)

Carbon (C)

0.26 max

0.26 max

Manganese (Mn)

1.20 max

1.20 max

Phosphorus (P)

0.035 max

0.035 max

Sulfur (S)

0.035 max

0.035 max

Silicon (Si)

0.15–0.40

0.15–0.40

Copper (Cu)

0.20 max (opt.)

0.20 max (opt.)

Nickel (Ni)

0.30 max (opt.)

0.30 max (opt.)

Chromium (Cr)

0.30 max (opt.)

0.30 max (opt.)

ASTM A500 Square& Rectangular Pipe-Mechanical Properties

Property

Grade B

Grade C

Yield Strength(MPa/ksi)

290 MPa/42 ksi

317 MPa/46 ksi

Tensile Strength(MPa/ksi)

414-534 MPa/60-77 ksi

450-565 MPa/65-82 ksi

Elongation(%)

20%min

18%min

Bend Test

Pass  180°

Pass  180°
