China Suppliers Hot Rolled Steel U Channel ASTM A36 - Steel C Channel from Reliable Factory
Specifications
- ✓Grade: ASTM A36 SS400 Q235B S235JR ASTM A572 GR.50 S355JR Q355B
- ✓Size: 5#-32#, U75-U200 as per customer's requirement
- ✓Length: 6m, 12m, customizable
- ✓Surface treatment: black
- ✓Packing: standard sea-worthy packaging
- ✓Delivery date: in stock, ships immediately
- ✓Service: punching, painting, galvanizing, cutting, welding, etc.
| GB/T 11263-98 STEEL U CHANNEL | |||||||
|---|---|---|---|---|---|---|---|
| Size | D (mm) | Tolerance | Bf (mm) | Tolerance | Thickness | Tolerance | Weight (kg/m) |
| 5# | 50 | ±1.5 | 37 | ±1.5 | 4.5 | ±0.4 | 5.438 |
| 6.3# | 63 | ±1.5 | 40 | ±1.5 | 4.8 | ±0.4 | 6.634 |
| 8# | 80 | ±1.5 | 43 | ±1.5 | 5.0 | ±0.4 | 8.045 |
| 10# | 100 | ±2.0 | 48 | ±2.0 | 5.3 | ±0.5 | 10.007 |
| 12# | 120 | ±2.0 | 53 | ±2.0 | 5.5 | ±0.5 | 12.059 |
| 14A# | 140 | ±2.0 | 58 | ±2.0 | 6.0 | ±0.5 | 14.535 |
| 14B# | 140 | ±2.0 | 60 | ±2.0 | 8.0 | ±0.5 | 16.733 |
| 16A# | 160 | ±2.0 | 63 | ±2.5 | 6.5 | ±0.6 | 17.240 |
| 16B# | 160 | ±2.0 | 65 | ±2.5 | 8.5 | ±0.6 | 19.752 |
| 18A# | 180 | ±2.0 | 68 | ±2.5 | 7.0 | ±0.6 | 20.147 |
| 18B# | 180 | ±2.0 | 70 | ±2.5 | 9.0 | ±0.6 | 23.000 |
| 20A# | 200 | ±3.0 | 73 | ±3.0 | 7.0 | ±0.7 | 22.637 |
| 20B# | 200 | ±3.0 | 75 | ±3.0 | 9.0 | ±0.7 | 25.777 |
| 22A# | 220 | ±3.0 | 77 | ±3.0 | 7.0 | ±0.7 | 24.999 |
| 22B# | 220 | ±3.0 | 79 | ±3.0 | 9.0 | ±0.7 | 28.453 |
| 25A# | 250 | ±3.0 | 78 | ±3.0 | 7.0 | ±0.7 | 27.410 |
| 25B# | 250 | ±3.0 | 80 | ±3.0 | 9.0 | ±0.7 | 31.335 |
| 28A# | 280 | ±3.0 | 82 | ±3.0 | 7.5 | ±0.7 | 31.427 |
| 28B# | 280 | ±3.0 | 84 | ±3.0 | 9.5 | ±0.7 | 35.823 |
| 30A# | 300 | ±3.0 | 85 | ±3.0 | 7.5 | ±0.7 | 34.463 |
| 30B# | 300 | ±3.0 | 87 | ±3.0 | 9.5 | ±0.7 | 39.173 |
| 32A# | 320 | ±3.0 | 88 | ±3.5 | 8.0 | ±0.8 | 38.083 |
| JIS STANDARD STEEL U CHANNEL | ||||
|---|---|---|---|---|
| Size | Depth x Flange width (mm) | Web Tolerance (mm) | Flange Tolerance (mm) | Weight (kg/m) |
| U75 | 75X40 | 3.80 | 7.00 | 5.30 |
| U75 | 75X40 | 4.00 | 7.00 | 5.60 |
| U75 | 75X40 | 4.50 | 7.00 | 5.85 |
| U75 | 75X40 | 5.00 | 7.00 | 6.92 |
| U100 | 100X50 | 3.80 | 6.00 | 7.30 |
| U100 | 100X50 | 4.20 | 6.00 | 8.03 |
| U100 | 100X50 | 4.50 | 7.50 | 8.97 |
| U100 | 100X50 | 5.00 | 7.50 | 9.36 |
| U125 | 125X65 | 5.20 | 6.80 | 11.66 |
| U125 | 125X65 | 5.30 | 6.80 | 12.17 |
| U125 | 125X65 | 5.50 | 8.00 | 12.91 |
| U125 | 125X65 | 6.00 | 8.00 | 13.40 |
| U150 | 150X75 | 5.50 | 7.30 | 14.66 |
| U150 | 150X75 | 5.70 | 10.00 | 16.71 |
| U150 | 150X75 | 6.00 | 10.00 | 17.90 |
| U150 | 150X75 | 6.50 | 10.00 | 18.60 |
| U150 | 150X75 | 9.00 | 12.50 | 24.00 |
| U200 | 200X80 | 7.50 | 11.00 | 24.60 |

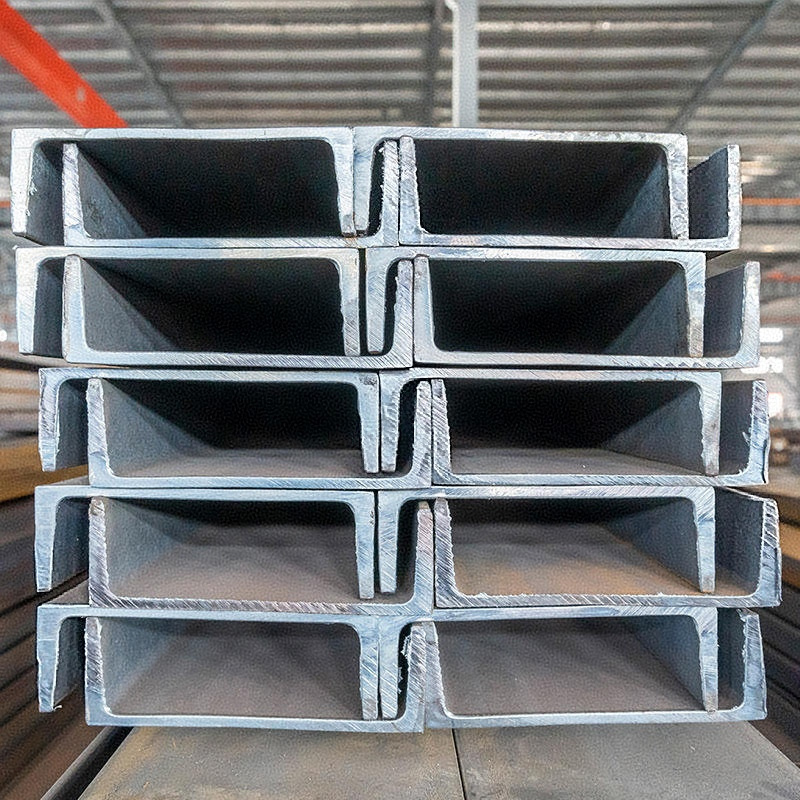

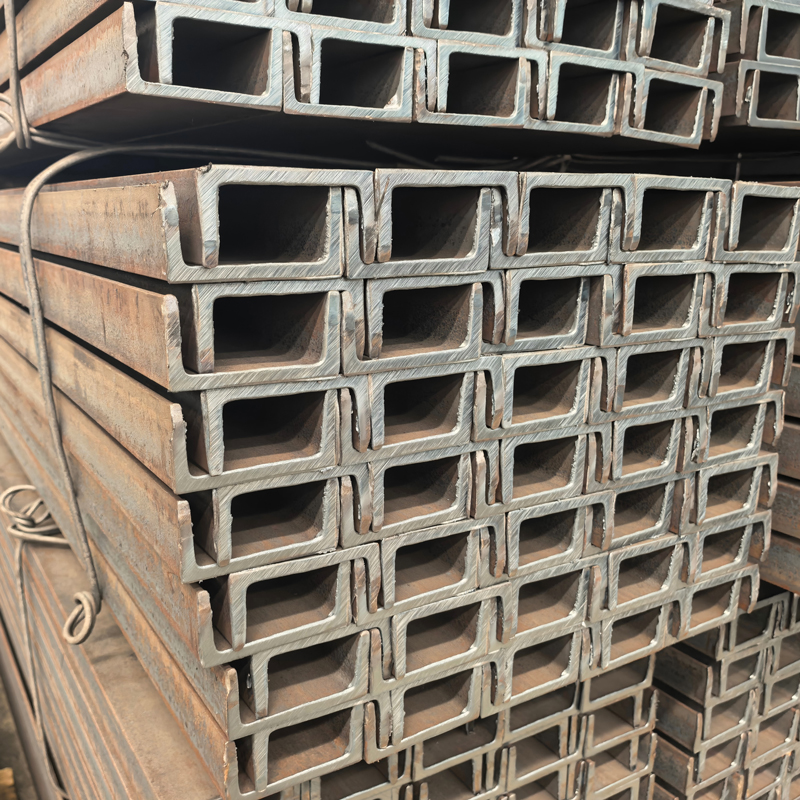

Product Display
Steel U Channel production line
Steel U Channel Warehouse

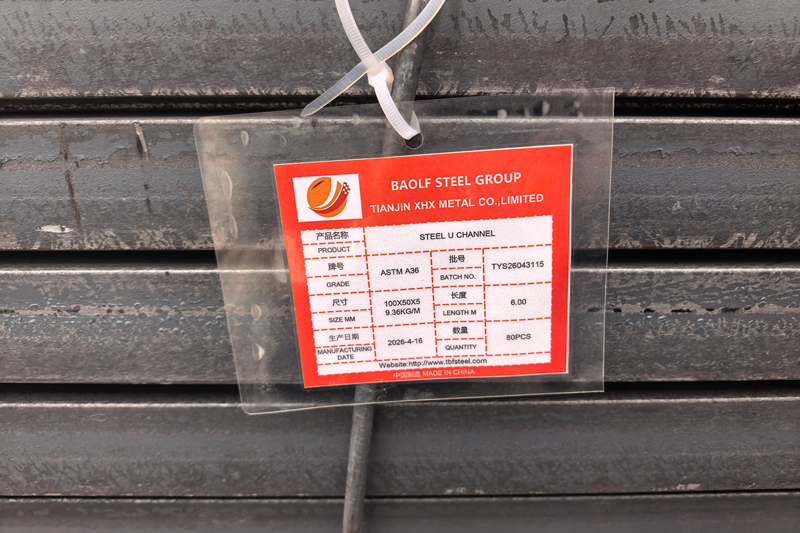

Product labels

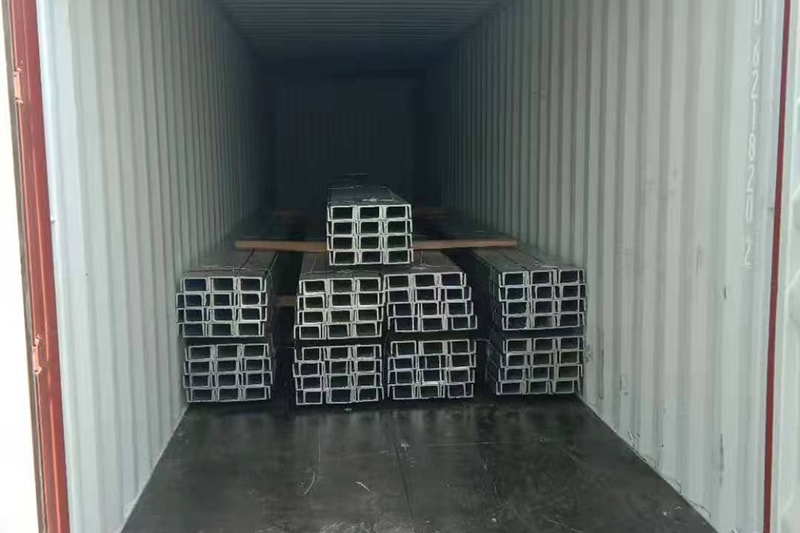

Loaded into container

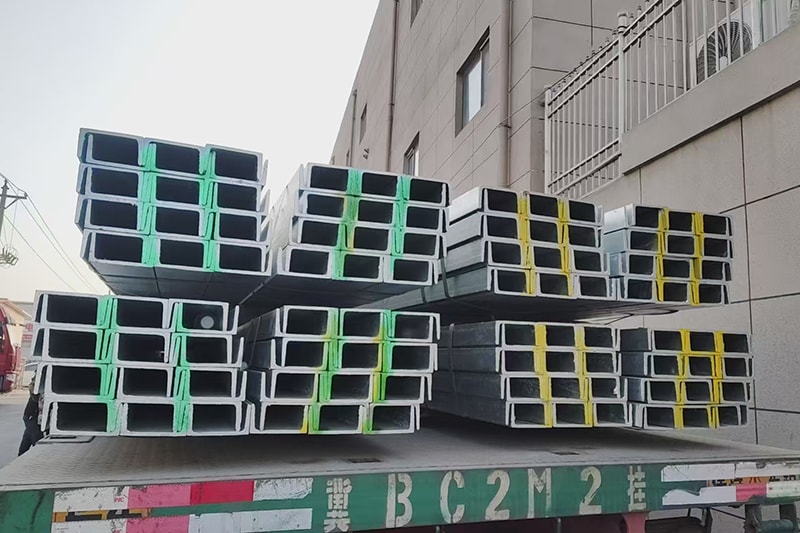

Transported to the port

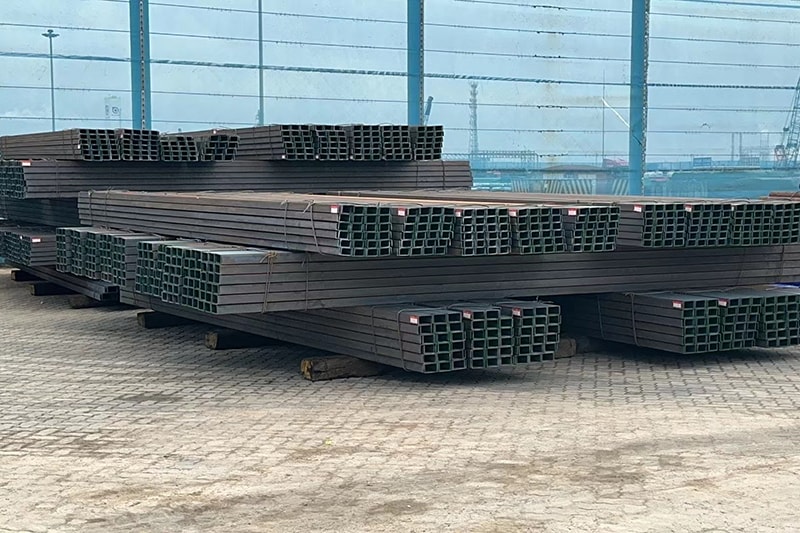

In the port yard
Shipping Process

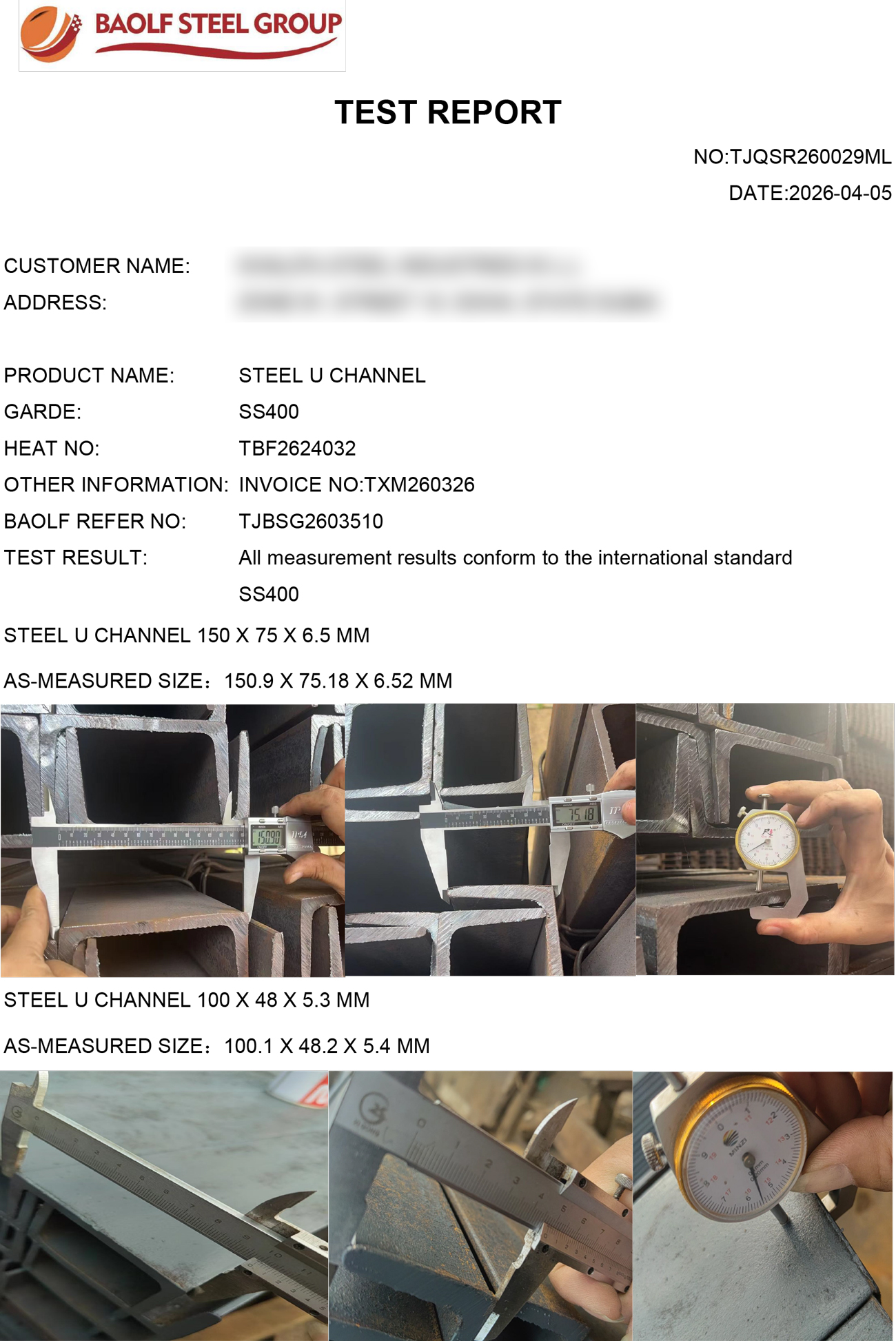

Free Quality Inspection Report
Exhibition
Company Certificate
CE
ISO14001:2015
ISO9001:2015
Alliance Member of Tianjin Metal Materials Industry Association
Alliance of China Steel Export
China National Association of Metal Material Trade
FAQ
QAre you a manufacturer?
Absolutely. We are a direct manufacturer with our own large-scale facility located in Tianjin, China. You are more than welcome to visit us!
QCan I place a trial order for just a few tons?
Certainly. We value every partner regardless of the order size. We can easily arrange an LCL (Less than Container Load) shipment to accommodate your specific needs.
QIs the sample free of charge?
Yes, we provide samples for free so you can verify our quality. We only ask the courier cost to be covered by the buyer.
QHow long is the delivery time?
Most sizes are in stock and can be shipped immediately.
QWhat steel grades do you provide for the U Channel?
We supply various grades including ASTM A36, SS400, Q235B, S235JR, ASTM A572 GR.50, S355JR, Q355B, and more.
QDo you provide customization and processing services?
Yes, we support processing services such as punching, painting, galvanizing, cutting, and welding to meet your specific project requirements.
