China A36 Carbon Steel Equal/Unequal Angle Bar - Quality Suppliers & Factory with 50,000 Tons in Stock
Specifications
- Grade: ASTM A36, JIS G3192, SS400, Q235B, Q355B, S235JR, S355JR
- Size: 25X25X3-200X200X24mm, 75X50X6-200X125X12mm, as per customer's requirement
- Surface treatment: Black
- Length: 6-12m, customization
- Packing: Standard sea-worthy packing
- Service: Punching, painting, galvanizing, cutting, welding, etc.
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| 25X25X3 | 1.124 | 75X75X5 | 5.818 | 125X125X12 | 22.696 |
| 25X25X4 | 1.459 | 75X75X6 | 6.905 | 125X125X14 | 26.193 |
| 30X30X3 | 1.373 | 75X75X7 | 7.976 | 130X130X9 | 17.9 |
| 30X30X4 | 1.786 | 75X75X8 | 9.030 | 130X130X15 | 23.4 |
| 40X40X3 | 1.852 | 75X75X10 | 11.089 | 130X130X15 | 28.8 |
| 40X40X4 | 2.422 | 80X80X6 | 7.376 | 140X140X10 | 21.488 |
| 40X40X5 | 2.976 | 80X80X7 | 8.525 | 140X140X12 | 25.522 |
| 45X45X3 | 2.088 | 80X80X8 | 9.658 | 150X150X12 | 27.3 |
| 45X45X4 | 2.736 | 80X80X10 | 11.874 | 150X150X15 | 33.6 |
| 45X45X5 | 3.369 | 90X90X6 | 8.350 | 160X160X12 | 29.391 |
| 50X50X3 | 2.332 | 90X90X7 | 9.656 | 160X160X14 | 33.987 |
| 50X50X4 | 3.059 | 90X90X8 | 10.946 | 160X160X16 | 38.518 |
| 50X50X5 | 3.770 | 90X90X10 | 13.476 | 180X180X12 | 33.159 |
| 50X50X6 | 4.465 | 100X100X6 | 9.366 | 180X180X14 | 38.383 |
| 63X63X5 | 4.822 | 100X100X7 | 10.830 | 180X180X16 | 43.542 |
| 63X63X6 | 5.721 | 100X100X8 | 12.276 | 180X180X18 | 48.634 |
| 63X63X8 | 7.469 | 100X100X10 | 15.120 | 200X200X14 | 42.894 |
| 70X70X5 | 5.397 | 100X100X12 | 17.898 | 200X200X16 | 48.680 |
| 70X70X6 | 6.406 | 110X110X10 | 16.690 | 200X200X18 | 54.401 |
| 70X70X7 | 7.398 | 125X125X8 | 15.504 | 200X200X20 | 60.056 |
| 70X70X8 | 8.373 | 125X125X10 | 19.133 | 200X200X24 | 71.168 |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|
| 75X50X6 | 5.670 | 125X75X10 | 15.000 |
| 75X50X8 | 7.350 | 125X75X12 | 17.800 |
| 100X75X6 | 8.040 | 150X75X8 | 15.900 |
| 100X75X7 | 9.320 | 150X75X10 | 19.500 |
| 100X75X8 | 10.600 | 150X90X8 | 13.120 |
| 100X75X9 | 11.800 | 150X90X10 | 16.400 |
| 100X75X10 | 13.000 | 150X90X12 | 18.200 |
| 100X75X12 | 15.400 | 150X90X15 | 21.500 |
| 125X75X7 | 10.700 | 150X100X8 | 21.200 |
| 125X75X8 | 12.200 | 150X100X10 | 26.000 |
| 125X75X9 | 13.600 | 150X100X12 | 30.800 |
| 160X100X10 | 19.872 | 180X110X14 | 30.589 |
| 160X100X12 | 23.592 | 180X110X16 | 34.649 |
| 160X100X14 | 27.247 | 200X125X12 | 29.761 |
| 160X100X16 | 30.835 | 200X125X14 | 34.436 |
| 180X110X10 | 22.272 | 200X125X16 | 39.045 |
| 180X110X12 | 26.464 | 200X125X18 | 43.588 |
Product Display

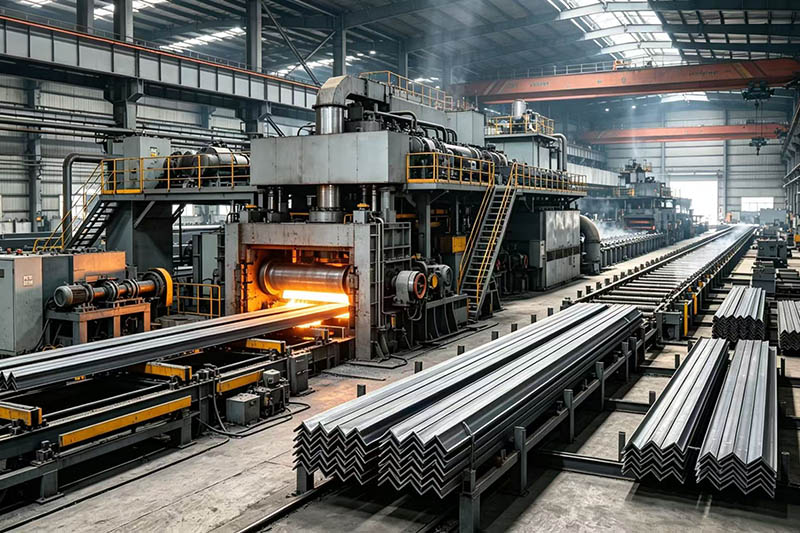

Angle bar production line

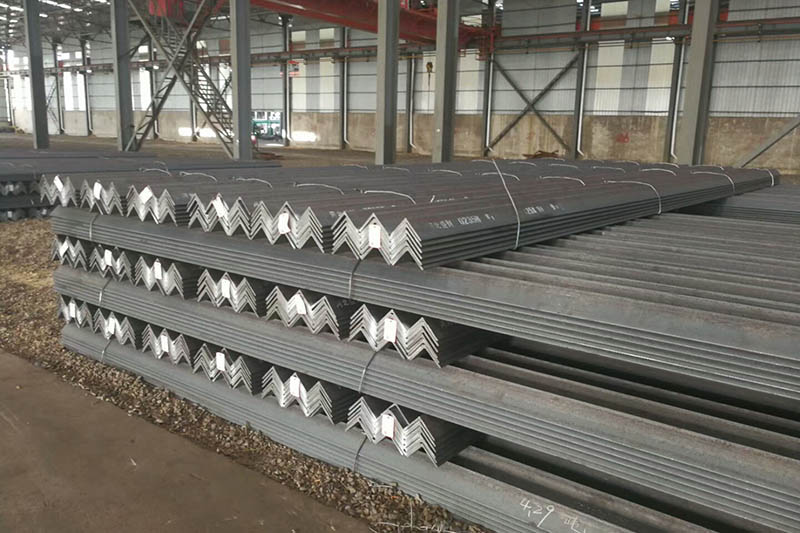

Angle bar warehouse

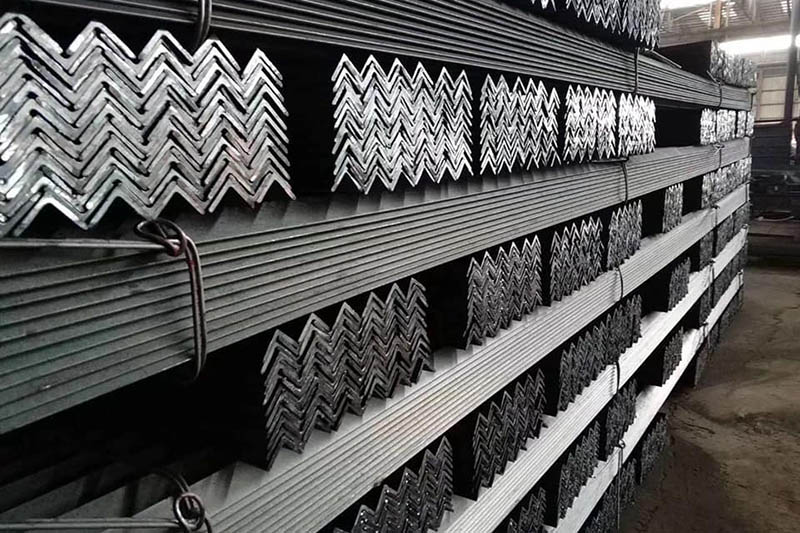

Angle Bar Packing

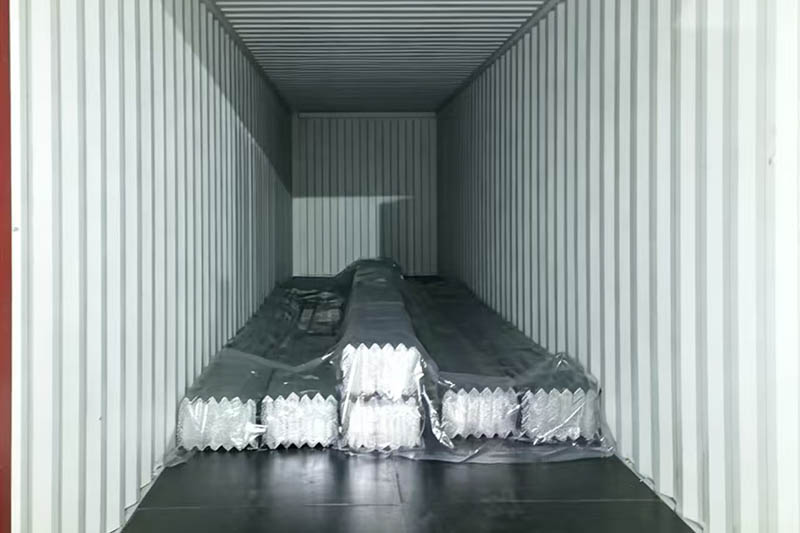

Loaded into container
Transported to the port

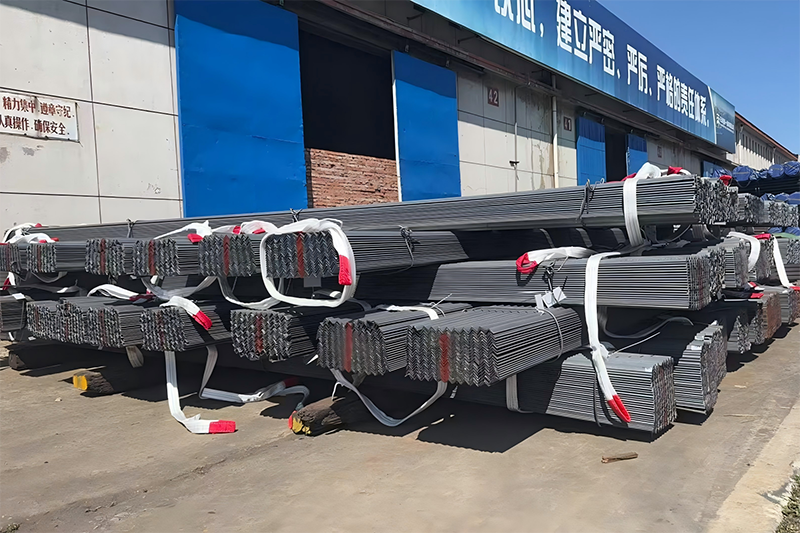

In the port yard
Shipping Process

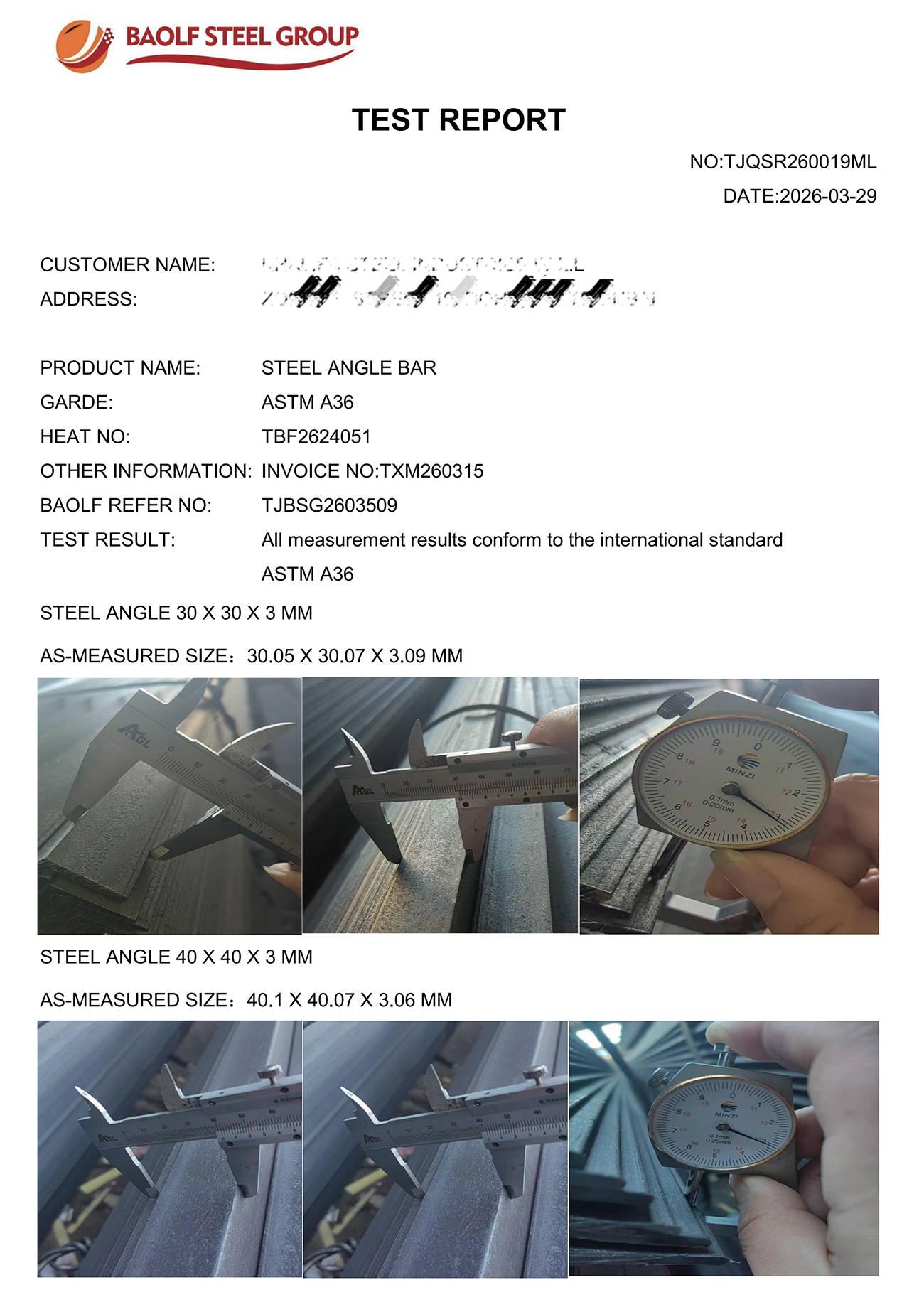

Free Quality Inspection Report
Exhibition
Company Certificate
CE
ISO14001:2015
ISO9001:2015
Alliance Member of Tianjin Metal Materials Industry Association
Alliance of China Steel Export
China National Association of Metal Material Trade
FAQ
Are you a manufacturer?
Absolutely. We are a direct manufacturer with our own large-scale facility located in Tianjin, China. You are more than welcome to visit us!
Can I place a trial order for just a few tons?
Certainly. We value every partner regardless of the order size. We can easily arrange an LCL (Less than Container Load) shipment to accommodate your specific needs.
Is the sample free of charge?
Yes, we provide samples for free so you can verify our quality. We only ask the buyer to cover the courier cost.
How long is the delivery time?
Most sizes are in stock and can be shipped immediately.
What steel grades do you provide for angle bars?
We supply a wide range of grades including ASTM A36, JIS G3192, SS400, Q235B, Q355B, S235JR, and S355JR to meet international standards.
What custom processing services do you offer?
We provide professional steel processing services including punching, painting, galvanizing, cutting, and welding according to your specific project requirements.
