High Strength S355JR IPE IPN Beams from China Suppliers - 50,000 TONS Available at Our Leading Factory
Specifications
01. Material Standard
European-standard
02. Dimensions
IPE 80 - IPE 600
03. Length
Standard 6 m & 12 m; custom lengths available
04. Surface Treatment
Hot-dip galvanizing, paint, etc. Customizable
05. Delivery Time
3-15 days (according to the actual tonnage)
06. Quality Certification
ISO 9001, SGS/BV Third-Party Inspection Report
07. Marking & Packaging
Special marking (with project ID or specs) is available; packaging can be customized for flatbed or container shipping.
08. Typical Applications
Home Construction, Bridges & Infrastructure, Industrial Projects, Steel Fabrication, Special Structures
09. Packaging Details
Export Waterproof Packaging, Strapping and Securing
Key Advantages in Engineering
Mechanical Performance
Highly efficient at managing both bending moments and shear forces, offering massive load-bearing capacities.
Design Flexibility
Available in an extensive range of depths and weights—from the compact IPE 80 to the heavy-duty IPE 600 (including ultra-light IPE AA series).
Ease of Construction
The parallel flange design makes drilling, welding, and bolting much more straightforward compared to tapered beams, reducing labor costs.
Sustainability & Economy
Provides high structural integrity while using less steel than wider profiles, making it a cost-effective and resource-efficient solution.
Specification Tables
| Designation | Unit Weight (kg/m) | Standard Sectional Dimension (mm) | Sectional Area (cm²) | |||||
|---|---|---|---|---|---|---|---|---|
| W | H | B | t1 | t2 | r | A | ||
| IPE80 | A | 5 | 78 | 46.0 | 3.3 | 4.2 | 5.0 | 6.38 |
| - | 6 | 80 | 46.0 | 3.8 | 5.2 | 5.0 | 7.64 | |
| IPE100 | A | 6.9 | 98 | 55.0 | 3.6 | 4.7 | 7.0 | 8.8 |
| - | 8.1 | 100 | 55.0 | 4.1 | 5.7 | 7.0 | 10.3 | |
| IPE120 | A | 8.66 | 117.6 | 64.0 | 3.8 | 5.1 | 7.0 | 11.03 |
| - | 10.4 | 120.0 | 64.0 | 4.4 | 6.3 | 7.0 | 13.21 | |
| IPE140 | A | 10.5 | 137.4 | 73.0 | 3.8 | 5.6 | 7.0 | 13.39 |
| - | 12.9 | 140.0 | 73.0 | 4.7 | 6.9 | 7.0 | 16.43 | |
| IPE160 | A | 12.7 | 157.0 | 82.0 | 4.0 | 5.9 | 9.0 | 16.18 |
| - | 15.8 | 160.0 | 82.0 | 5.0 | 7.4 | 9.0 | 20.09 | |
| IPE180 | A | 15.4 | 177.0 | 91.0 | 4.3 | 6.5 | 9.0 | 19.58 |
| - | 18.8 | 180.0 | 91.0 | 5.3 | 8.0 | 9.0 | 23.95 | |
| O | 21.3 | 182.0 | 92.0 | 6.0 | 9.0 | 9.0 | 27.10 | |
| IPE200 | A | 18.4 | 197.0 | 100.0 | 4.5 | 7.0 | 12.0 | 23.47 |
| - | 22.4 | 200.0 | 100.0 | 5.6 | 8.5 | 12.0 | 28.48 | |
| O | 25.1 | 202.0 | 102.0 | 6.2 | 9.5 | 12.0 | 31.96 | |
| IPE220 | A | 22.2 | 217.0 | 110.0 | 5.0 | 7.7 | 12.0 | 28.26 |
| - | 26.2 | 220.0 | 110.0 | 5.9 | 9.2 | 12.0 | 33.37 | |
| O | 29.4 | 222.0 | 112.0 | 6.6 | 10.2 | 12.0 | 37.39 | |
| IPE240 | A | 26.2 | 237.0 | 120.0 | 5.2 | 8.3 | 15.0 | 33.31 |
| - | 30.7 | 240.0 | 120.0 | 6.2 | 9.8 | 15.0 | 39.12 | |
| O | 34.3 | 242.0 | 122.0 | 7.0 | 10.8 | 15.0 | 43.71 | |
| IPE270 | A | 30.7 | 267.0 | 135.0 | 5.5 | 8.7 | 15.0 | 39.15 |
| - | 36.1 | 270.0 | 135.0 | 6.6 | 10.2 | 15.0 | 45.95 | |
| O | 42.3 | 274.0 | 136.0 | 7.5 | 12.2 | 15.0 | 53.84 | |
| Designation | Unit Weight (kg/m) | Standard Sectional Dimension (mm) | Sectional Area (cm²) | |||||
|---|---|---|---|---|---|---|---|---|
| W | H | B | t1 | t2 | r | A | ||
| IPE300 | A | 36.5 | 297.0 | 150.0 | 6.1 | 9.2 | 15.0 | 46.53 |
| - | 42.2 | 300.0 | 150.0 | 7.1 | 10.7 | 15.0 | 53.81 | |
| O | 49.3 | 304.0 | 152.0 | 8.0 | 12.7 | 15.0 | 62.83 | |
| IPE330 | A | 43.0 | 327.0 | 160.0 | 6.5 | 10.0 | 18.0 | 54.74 |
| - | 49.2 | 330.0 | 160.0 | 7.5 | 11.5 | 18.0 | 62.61 | |
| O | 57.0 | 334.0 | 162.0 | 8.5 | 13.5 | 18.0 | 72.62 | |
| IPE360 | A | 50.2 | 357.6 | 170.0 | 6.6 | 11.5 | 18.0 | 63.96 |
| - | 57.1 | 360.0 | 170.0 | 8.0 | 12.7 | 18.0 | 72.73 | |
| IPE400 | A | 57.4 | 397.0 | 180.0 | 7.0 | 12.0 | 21.0 | 73.10 |
| - | 66.3 | 400.0 | 180.0 | 8.6 | 13.5 | 21.0 | 84.46 | |
| O | 75.7 | 404.0 | 182.0 | 9.7 | 15.5 | 21.0 | 96.39 | |
| IPE450 | A | 67.2 | 447.0 | 190.0 | 7.6 | 13.1 | 21.0 | 85.55 |
| - | 77.6 | 450.0 | 190.0 | 9.4 | 14.6 | 21.0 | 98.82 | |
| O | 92.4 | 456.0 | 192.0 | 11.0 | 17.6 | 21.0 | 117.7 | |
| IPE500 | A | 79.4 | 497.0 | 200.0 | 8.4 | 14.5 | 21.0 | 101.1 |
| - | 90.7 | 500.0 | 200.0 | 10.2 | 16.0 | 21.0 | 115.5 | |
| O | 107 | 506.0 | 202.0 | 12.0 | 19.0 | 21.0 | 136.7 | |
| IPE550 | A | 92.1 | 547.0 | 210.0 | 9.0 | 15.7 | 24.0 | 117.3 |
| - | 106 | 550.0 | 210.0 | 11.1 | 17.2 | 24.0 | 134.4 | |
| O | 123 | 556.0 | 212.0 | 12.7 | 20.0 | 24.0 | 156.1 | |
| IPE600 | A | 108 | 597.0 | 220.0 | 9.8 | 17.5 | 24.0 | 137.0 |
| - | 122 | 600.0 | 220.0 | 12.0 | 19.0 | 24.0 | 156.0 | |
| O | 154 | 610.0 | 224.0 | 15.0 | 24.0 | 24.0 | 196.8 | |
| Size | Depth x Flange width (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|
| IPEAA80 | 80x46 | 3.2 | 4.2 | 4.95 |
| IPEAA100 | 100x55 | 3.6 | 4.5 | 6.72 |
| IPEAA120 | 120x64 | 3.8 | 4.8 | 8.36 |
| IPEAA140 | 140x73 | 3.8 | 5.2 | 10.05 |
| IPEAA160 | 160x82 | 4.0 | 5.6 | 12.31 |
| IPEAA180 | 180x91 | 4.3 | 6.2 | 14.94 |
| IPEAA200 | 200x100 | 4.5 | 6.7 | 17.95 |
| IPEAA220 | 220x110 | 4.7 | 7.4 | 21.19 |
Product Display

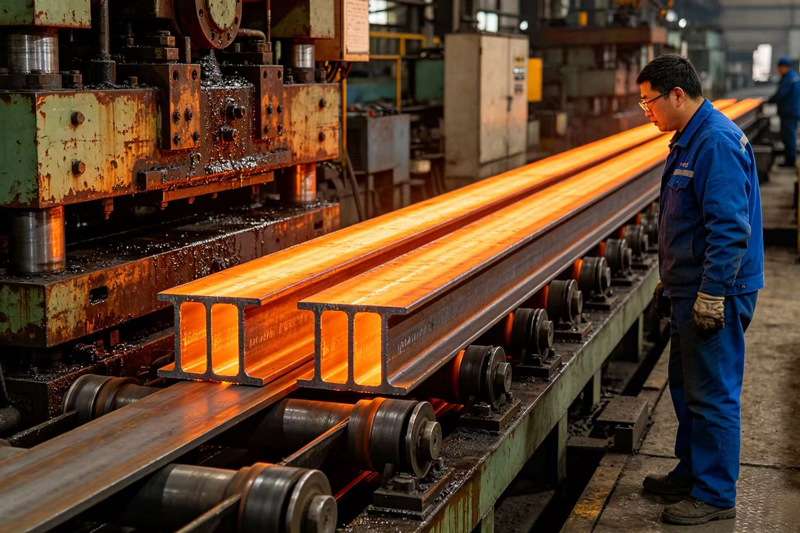

IPE -Beam production line

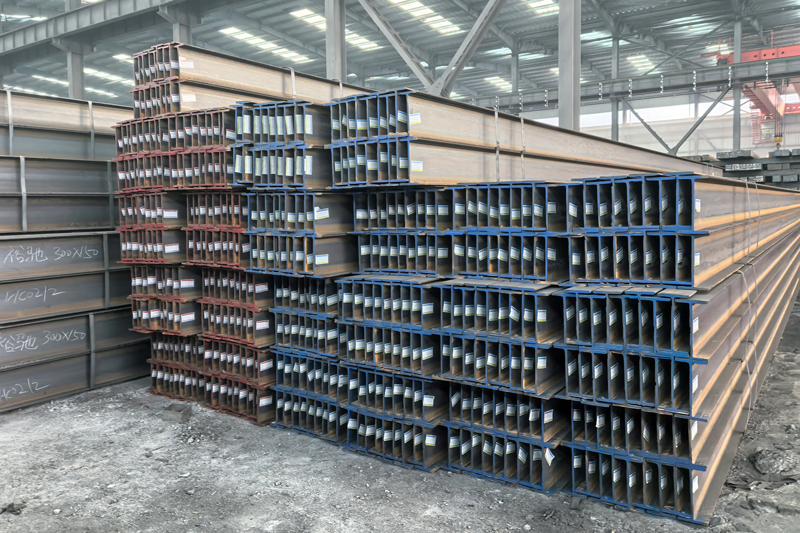

IPE -Beam warehouse

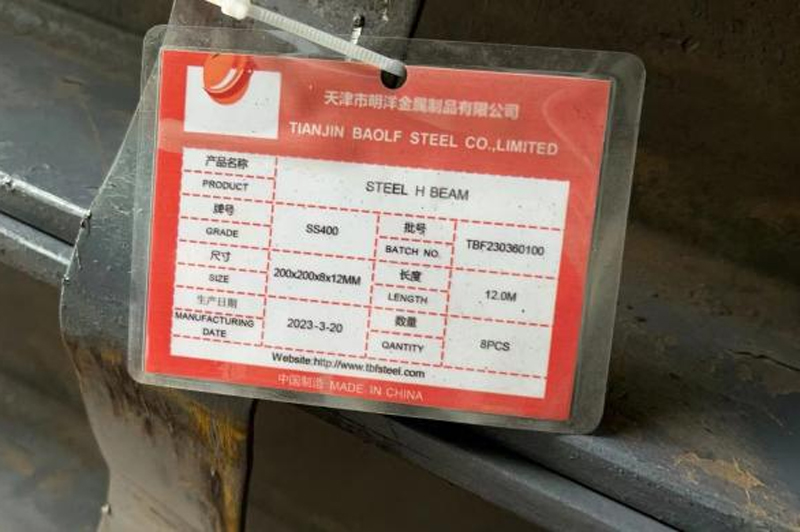

Product Labels

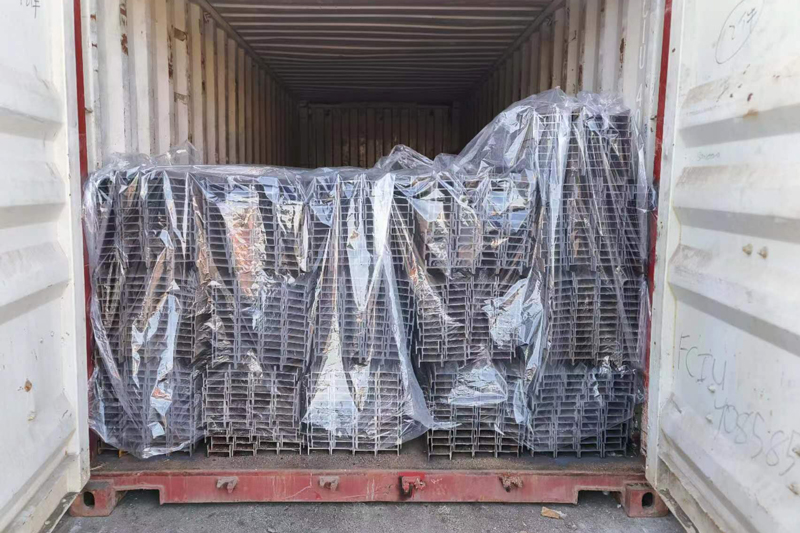

Loaded into container

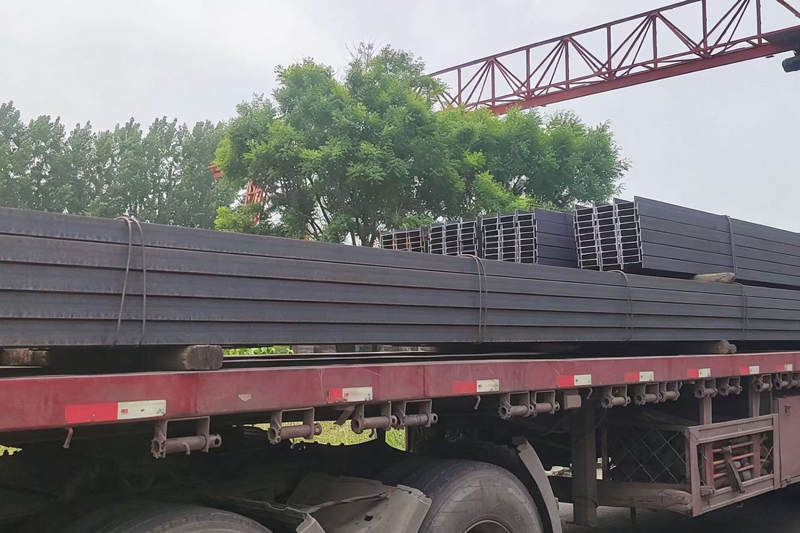

Transported to the port

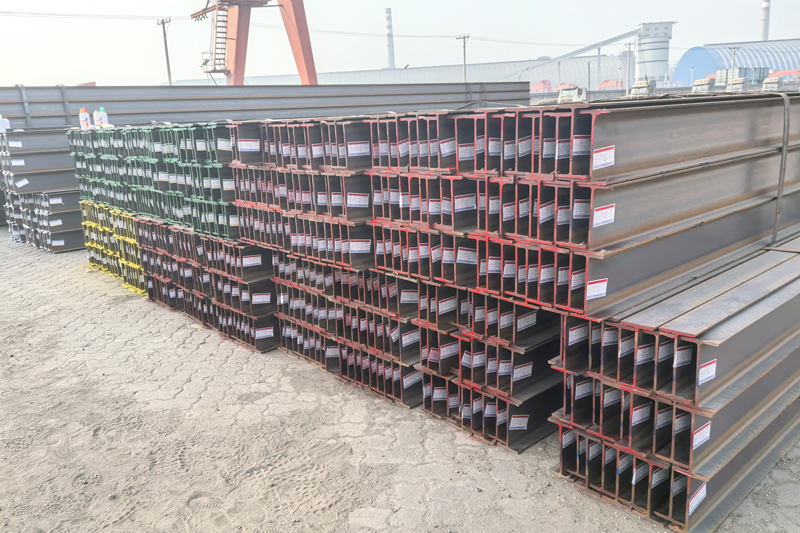

In the port yard
Shipping Process
Exhibition
Exhibition 01
Exhibition 02
Exhibition 03
Exhibition 04
Exhibition 05
Exhibition 06
Company Certificate
CE
ISO14001:2015
ISO9001:2015
Alliance Member OF Tianjin Metal Materials Industry Association
Alliance of China Steel Export
China National Association of Metal Material Trade
FAQ
Q: Are you a manufacturer?
A: Absolutely. We are a direct manufacturer with our own large-scale facility located in Tianjin, China. You are more than welcome to visit us!
Q: Can I place a trial order for just a few tons?
A: Certainly. We value every partner regardless of the order size. We can easily arrange an LCL (Less than Container Load) shipment to accommodate your specific needs.
Q: Is the sample free of charge?
A: Yes, we provide samples for free so you can verify our quality. We only ask the buyer to cover the courier cost.
Q: How long is the delivery time?
A: Most sizes are in stock and can be shipped immediately. The standard delivery time is 3-15 days depending on the actual tonnage.
Q: What standard lengths of IPE beams are available?
A: Standard lengths are 6 meters and 12 meters. We also offer customizable lengths to fit your specific engineering requirements.
Q: What surface treatments can you provide for IPE beams?
A: We offer hot-dip galvanizing, painting, and other customizable surface treatments to ensure long-term durability and corrosion resistance.
