Universal Beam/Universal Column

EN 10025 S355JR Universal Beam/Universal Column

Brief introduction:
Universal Beam/Universal Column Steel stock of 50,000 TONS

Material Standard BS‑EN 10025‑2
Size UB127 x 76 - 1016 x 305 and UC152 x 152 - 356 x 406
Length Standard 6 m & 12 m; custom lengths available
Delivery Time 3-15 days (according to the actual tonnage)
Quality Certification ISO 9001, SGS/BV Third-Party Inspection Report
Marking & Packaging Customization Special marking (with project ID or specs) is available; packaging can be customized for flatbed or container shipping.
Typical Applications Home Construction,Bridges & Infrastructure,Industrial Projects,Steel Fabrication,Special Structures

product details

Specifications

1.Material Standard:BS-EN 10025-2

2.Dimensions: UB127 x 76 - 1016 x 305 and UC152 x 152 - 356 x 406

3.Length:Standard 6 m & 12 m; custom lengths available

4.Delivery Time:3-15 days (according to the actual tonnage)

5.Quality Certification:ISO 9001, SGS/BV Third-Party Inspection Report

6.Marking & Packaging Customization: Special marking (with project ID or specs) is available; packaging can be customized for flatbed or container shipping.

7.Applications:Home Construction,Bridges & Infrastructure,Industrial Projects,Steel Fabrication,Special Structures

Designation		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
Designation		M	H	B	t1	t2	r	A
UB127×76	13	13	127.0	76	4	7.6	7.6	16.52
UB152×89	16	16	152.4	88.7	4.5	7.7	7.6	20.32
UB178×102	19	19	177.8	101.2	4.8	7.9	7.6	24.26
UB203×102	23	23.1	203.2	101.8	5.4	9.3	7.6	29.40
UB203×133	25	25.1	203.2	133.2	5.7	7.8	7.6	31.97
UB203×133	30	30.0	206.8	133.9	6.4	9.6	7.6	38.21
UB254×102	22	22.0	254.0	101.6	5.7	6.8	7.6	28.02
UB254×102	25	25.2	257.2	101.9	6.0	8.4	7.6	32.04
UB254×102	28	28.3	260.4	102.2	6.3	10.0	7.6	36.08
UB254×146	31	31.1	251.4	146.1	6.0	8.6	7.6	39.68
UB254×146	37	37.0	256.0	146.4	6.3	10.9	7.6	47.17
UB254×146	43	43.0	259.6	147.3	7.2	12.7	7.6	54.77
UB305×102	25	24.8	305.1	101.6	5.8	7.0	7.6	31.60
UB305×102	28	28.2	308.7	101.8	6.0	8.8	7.6	35.88
UB305×102	33	32.8	312.7	102.4	6.6	10.8	7.6	41.83
UB305×127	37	37.0	304.4	123.4	7.1	10.7	8.9	47.18
UB305×127	42	41.9	307.2	124.3	8.0	12.1	8.9	53.40
UB305×127	48	48.1	311.0	125.3	9.0	14.0	8.9	61.23
UB305×165	40	40.3	303.4	165.0	6.0	10.2	8.9	51.32
UB305×165	46	46.1	306.6	165.7	6.7	11.8	8.9	58.75
UB305×165	54	54.0	310.4	166.9	7.9	13.7	8.9	68.77
UB356×127	33	33.1	349.0	125.4	6.0	8.5	10.2	42.13
UB356×127	39	39.1	353.4	126.0	6.6	10.7	10.2	49.77

Designation		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
Designation		M	H	B	t1	t2	r	A
UB356×171	45	45.0	351.4	171.1	7.0	9.7	10.2	57.33
UB356×171	51	51.0	355.0	171.5	7.4	11.5	10.2	64.91
UB356×171	57	57.0	358.0	172.2	8.1	13.0	10.2	72.56
UB356×171	67	67.1	363.4	173.2	9.1	15.7	10.2	85.49
UB406×140	39	39.0	398.0	141.8	6.4	8.6	10.2	49.65
UB406×140	46	46.0	403.2	142.2	6.8	11.2	10.2	58.64
UB406×178	54	54.1	402.6	177.7	7.7	10.9	10.2	68.95
UB406×178	60	60.1	406.4	177.9	7.9	12.8	10.2	76.52
UB406×178	67	67.1	409.4	178.8	8.8	14.3	10.2	85.54
UB406×178	74	74.2	412.8	179.5	9.5	16.0	10.2	94.51
UB457×152	52	52.3	449.8	152.4	7.6	10.9	10.2	66.64
UB457×152	60	59.8	454.6	152.9	8.1	13.3	10.2	76.23
UB457×152	67	67.2	458.0	153.8	9.0	15.0	10.2	85.55
UB457×152	74	74.2	462.0	154.4	9.6	17.0	10.2	94.48
UB457×152	82	82.1	465.8	155.3	10.5	18.9	10.2	104.5
UB457×191	67	67.1	453.4	189.9	8.5	12.7	10.2	85.51
UB457×191	74	74.3	457.0	190.4	9.0	14.5	10.2	94.63
UB457×191	82	82.0	460.0	191.3	9.9	16.0	10.2	104.5
UB457×191	89	89.3	463.4	191.9	10.5	17.7	10.2	113.8
UB457×191	98	98.3	467.2	192.8	11.4	19.6	10.2	125.3
UB533×210	82	82.2	528.3	208.8	9.6	13.2	12.7	104.7
UB533×210	92	92.1	533.1	209.3	10.1	15.6	12.7	117.4
UB533×210	101	101.0	536.7	210.0	10.8	17.4	12.7	128.7
UB533×210	109	109.0	539.5	210.8	11.6	18.8	12.7	138.9
UB533×210	122	122.0	544.5	211.9	12.7	21.3	12.7	155.4
UB610×229	101	101.2	602.6	227.6	10.5	14.8	12.7	128.9
UB610×229	113	113.0	607.6	228.2	11.1	17.3	12.7	143.9
UB610×229	125	125.1	612.2	229.0	11.9	19.6	12.7	159.3
UB610×229	140	139.9	617.2	230.2	13.1	22.1	12.7	178.2
UB610×305	149	149.1	612.4	304.8	11.8	19.7	16.5	190.0
UB610×305	179	179.0	620.2	307.1	14.1	23.6	16.5	228.1
UB610×305	238	238.1	635.8	311.4	18.4	31.4	16.5	303.3
UB686×254	125	125.1	677.9	253.0	11.7	16.2	15.2	159.5
UB686×254	140	140.1	683.5	253.7	12.4	19.0	15.2	178.4
UB686×254	152	152.4	687.5	254.5	13.2	21.0	15.2	194.1
UB686×254	170	170.2	692.9	255.8	14.5	23.7	15.2	216.8
UB762×267	134	133.9	750.0	264.4	12.0	15.5	16.5	170.6
UB762×267	147	146.9	754.0	265.2	12.8	17.5	16.5	187.2
UB762×267	173	173.0	762.2	266.7	14.3	21.6	16.5	220.4
UB762×267	197	196.8	769.8	268.0	15.6	25.4	16.5	250.6

Designation		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
Designation		M	H	B	t1	t2	r	A
UB838×292	176	175.9	834.9	291.7	14.0	18.8	17.8	224.0
UB838×292	194	193.8	840.7	292.4	14.7	21.7	17.8	246.8
UB838×292	226	226.5	850.9	293.8	16.1	26.8	17.8	288.6
UB914×305	201	200.9	903.0	303.3	15.1	20.2	19.1	255.9
UB914×305	224	224.2	910.4	304.1	15.9	23.9	19.1	285.6
UB914×305	253	253.4	918.4	305.5	17.3	27.9	19.1	322.8
UB914×305	289	289.1	926.6	307.7	19.5	32.0	19.1	368.3
UB914×305	343	343.3	911.8	418.5	19.4	32	24.1	437.3
UB914×305	388	388	921	420.5	21.4	36.6	24.1	494.2
UB1016×305	222	222	970	300	16	21.1	30	282.8
UB1016×305	249	249	980	300	16.5	26	30	316.8
UB1016×305	272	272	990	300	16.5	31	30	346.8
UB1016×305	314	314	1000	300	19.1	35.9	30	400.4
UB1016×305	350	350	1008	302	21.1	40	30	445.4
UB1016×305	393	393	1016	303	24.4	43.9	30	500.2
UB1016×305	415	415	1020	304	26	46	30	528.7
UB1016×305	438	438	1026	305	26.9	49	30	556.3
UB1016×305	494	494	1036	309	31	54	30	629.1
UB1016×305	584	584	1056	314	36	64	30	743.7

Designation		Unit Weight (kg/m)	Standard Sectional Dimension (mm)					Sectional Area (cm²)
Designation		M	H	B	t1	t	r	A
152×152	23	23.0	152.4	152.2	5.8	6.8	7.6	29.25
	30	30.0	157.6	152.9	6.5	9.4	7.6	38.26
	37	37.0	161.8	154.4	8.0	11.5	7.6	47.11
203×203	46	46.1	203.2	203.6	7.2	11.0	10.2	58.73
	52	52.0	206.2	204.3	7.9	12.5	10.2	66.28
	60	60.0	209.6	205.8	9.4	14.2	10.2	76.37
	71	71.0	215.8	206.4	10.0	17.3	10.2	90.43
	86	86.1	222.2	209.1	12.7	20.5	10.2	109.60
254×254	73	73.1	254.1	254.6	8.6	14.2	12.7	93.10
	89	88.9	260.3	256.3	10.3	17.3	12.7	113.30
	107	107.1	266.7	258.8	12.8	20.5	12.7	136.40
	132	132.0	276.3	261.3	15.3	25.3	12.7	168.10
	167	167.1	289.1	265.2	19.2	31.7	12.7	212.90
305×305	97	96.9	307.9	305.3	9.9	15.4	15.2	123.40
	118	117.9	314.5	307.4	12.0	18.7	15.2	150.20
	137	136.9	320.5	309.2	13.8	21.7	15.2	174.40
	158	158.1	327.1	311.2	15.8	25.0	15.2	201.40
	198	198.1	339.9	314.5	19.1	31.4	15.2	252.40
	240	240.0	352.5	318.4	23.0	37.7	15.2	305.80
	283	282.9	365.3	322.2	26.8	44.1	15.2	360.40
356×368	129	129.0	355.6	368.6	10.4	17.5	15.2	164.30
	153	152.9	362.0	370.5	12.3	20.7	15.2	194.80
	177	177.0	368.2	372.6	14.4	23.8	15.2	225.50
	202	201.9	374.6	374.7	16.5	27.0	15.2	257.20
356×406	235	235.1	381.0	394.8	18.4	30.2	15.2	299.40
	287	287.1	393.6	399.0	22.6	36.5	15.2	365.70
	340	339.9	406.4	403.0	26.6	42.9	15.2	433.00
	393	393.0	419.0	407.0	30.6	49.2	15.2	500.60
	467	467.0	436.6	412.2	35.8	58.0	15.2	594.90
	551	551.0	455.6	418.5	42.1	67.5	15.2	701.90
	634	633.9	474.6	424.0	47.6	77.0	15.2	807.50

Product display

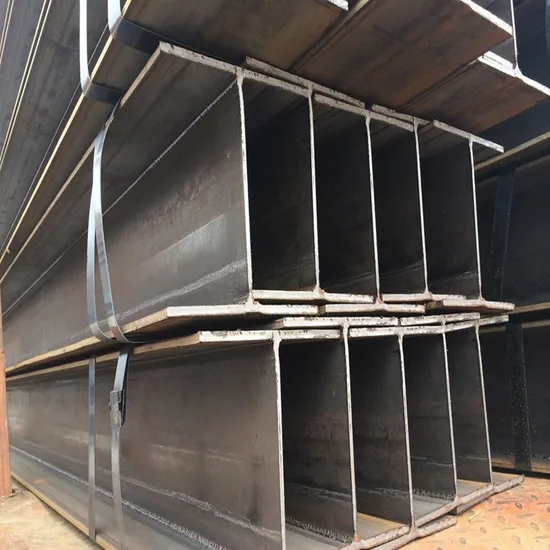

UB/UC product details

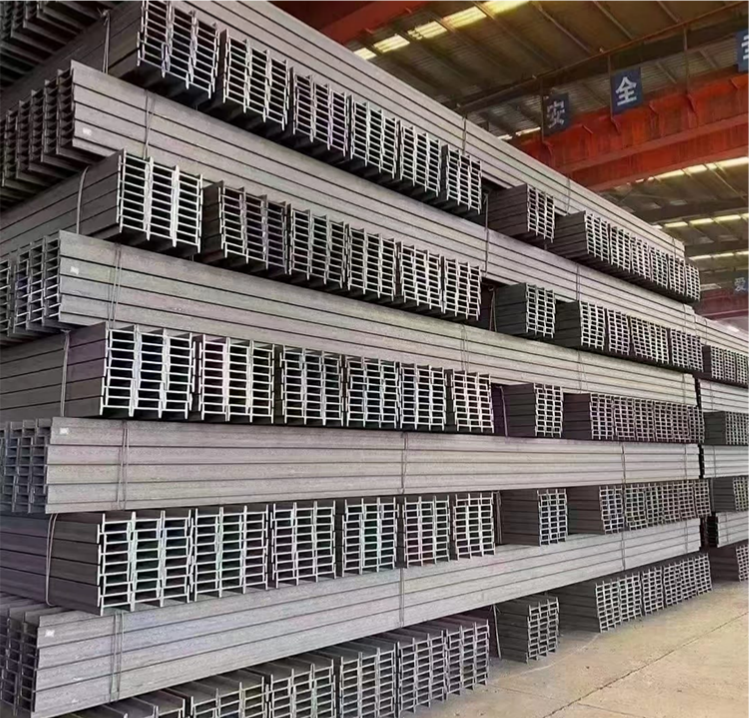

UB/UC warehouse

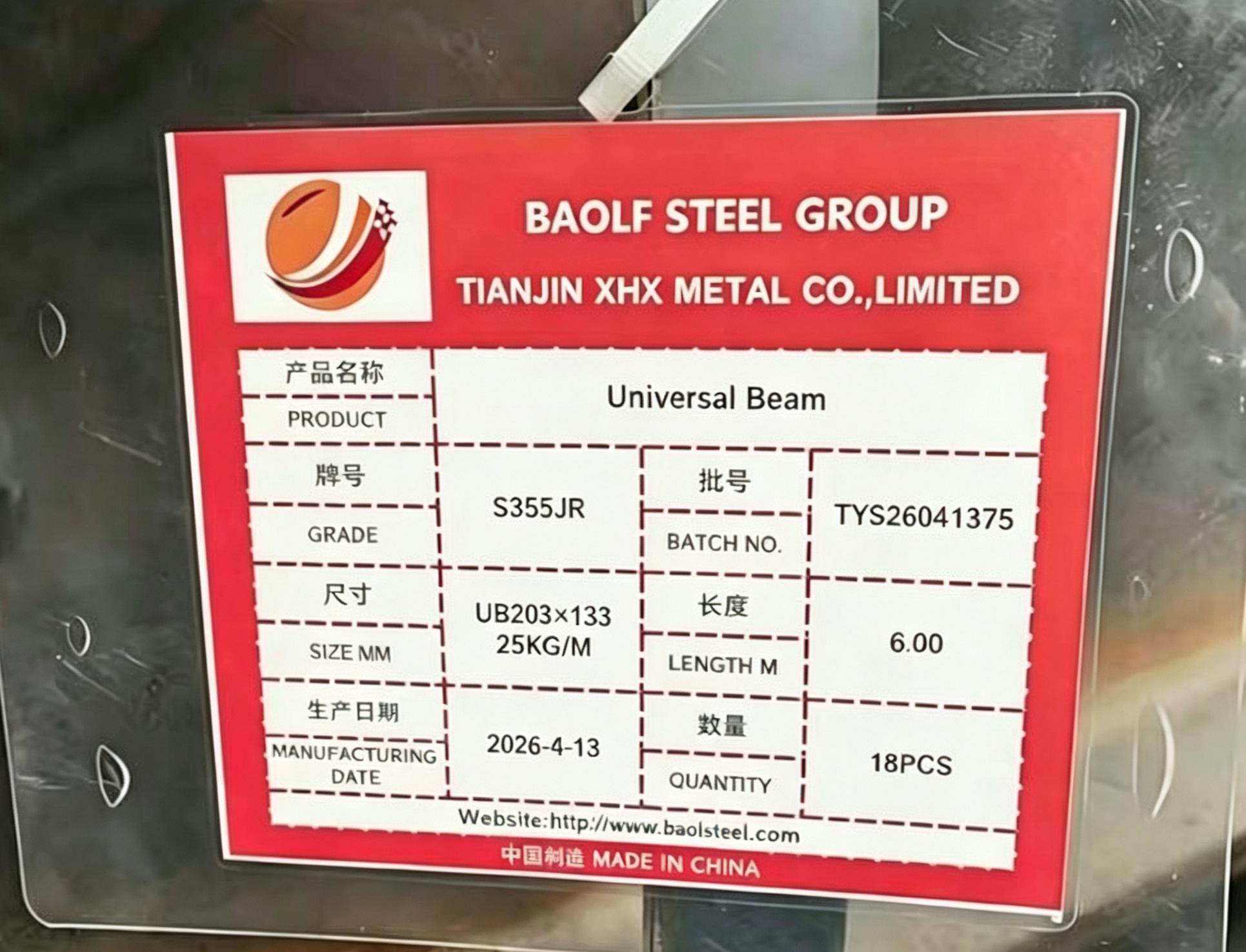

Product labels

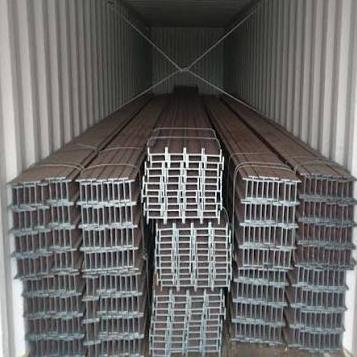

Loaded into container

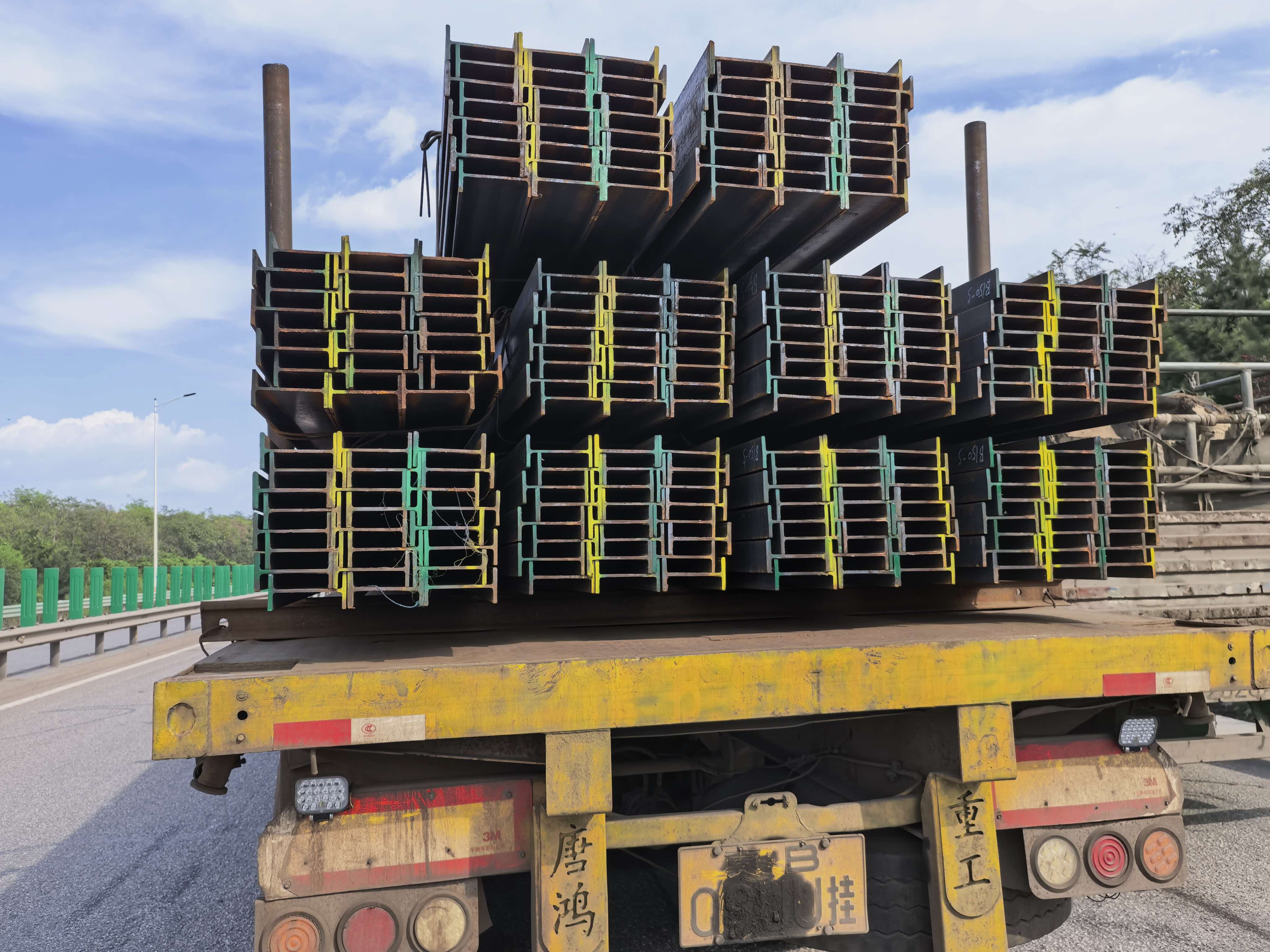

Transported to the port
In the port yard

Shipping process

Exhibition

Company Certificate

CE
ISO14001:2015
ISO9001:2015

Alliance Member OF Tianjin Metal Materials Industry Association
Alliance of China Steel Export
China National Association of Metal Material Trade

FAQ

Q: Are you a manufacturer?

A: Absolutely. We are a direct manufacturer with our own large-scale facility located in Tianjin, China. You are more than welcome to visit us!

Q: Can I place a trial order for just a few tons?

A: Certainly. We value every partner regardless of the order size. We can easily arrange an LCL (Less than Container Load) shipment to accommodate your specific needs.

Q: Is the sample free of charge?

A: Yes, we provide samples for free so you can verify our quality. We only ask the buyer to cover the courier cost.

Q: How long is the delivery time?

A: Most sizes are in stock and can be shipped immediately.
